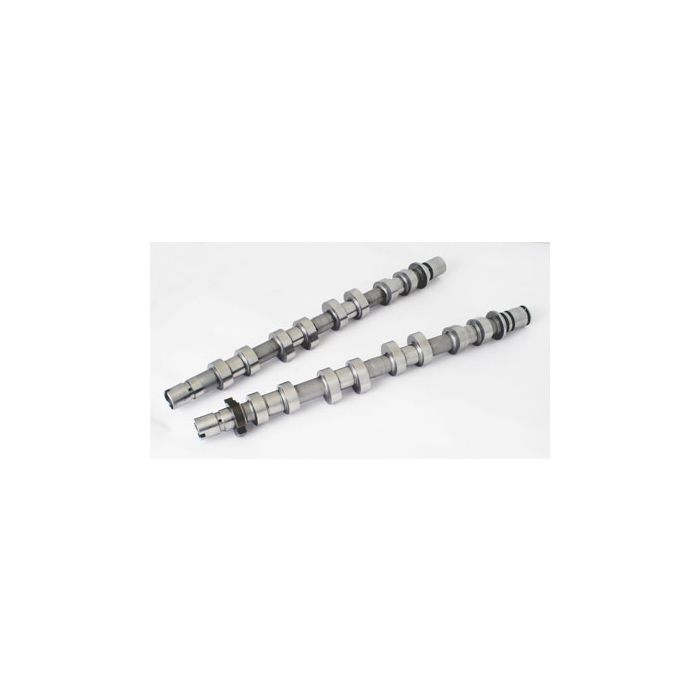

Clio 2 RS 172/182 Cat Cams
SKU
Clio 2 RS 172/182 Cat Cams
£714.00
£595.00
In stock
SKU
Clio 2 RS 172/182 Cat Cams
Please select your Clio 2 RS 172/182 Cat Cams below
The Cat Cams range for the F4R engine are machined from hollow billet steel blanks to ensure strength and durability.
The data shown below gives information on whether the camshafts can be used with or without the VVT, with standard or uprated valve springs and also whether it requires to be run on a solid lifter conversion - please see our solid lifters here. When choosing a suitable camshaft bigger isn't always better and this is expecially true for the F4R engines as they have a very long stroke and can't be revved very hard due to the roller bearing cam followers.
We keep a small range of these cams in stock but if we don't have stock we will contact you and lead time is normally 4-5 weeks for delivery.
5502420: This is the Renault Sport Group N profile and they are machined to the maximum limits allowed.
5502428: Good fast road cam, requires ECU re-map
5502421: Good fast road /track day cam, needs aftermarket ECU to run well.
5502438: Good fast road cam, the most aggreesive cam that can be used with OE ECU, requires ECU re-map
5502422: Good ultimate road/track day cam, needs aftermarket ECU to run well.
5503431-4: Suitable for competition engines with vernier pulleys and aftermarket ECU
5503505-6: Suitable for high level competition engines, need to be able to rev much higher that standard so need very good quality and lightweight rods and pistons and also new rockers and solid tappet conversion - we can supply and fit a solid lifter conversion and grind the tappets to the required valve clearance, please see here.
Cams to retain VVT on inlet
5502420 269°/256° - 231°/220° - 11.25mm/10.25mm - 0.40mm/1.15mm sport
5502428
272°/256° - 236°/220° - 11.30mm/10.25mm - 0.55mm/1.15mm
sport5502438 277°/268° - 240°/231° - 11.25mm/10.25mm - 0.65mm/0.95mm sport
5502421 277°/268° - 240°/231° - 11.25mm/10.25mm - 0.65mm/1.75mm sport
5502422 284°/277° - 247°/240° - 11.25mm/11.25mm - 0.95mm/2.30mm ultimate road/rally
5502423 292°/284° - 255°/247° - 11.25mm/11.25mm - 1.35mm/2.80mm tarmac rally/race
Cams to remove VVT
5503432 278°/269° - 242°/234° - 11.55mm/10.80mm - 2.55mm/2.00mm ultimate road - rally
5503433 285°/278° - 251°/242° - 11.70mm/11.55mm - 3.30mm/2.85mm tarmac rally - race
5503431 293°/285° - 258°/251° - 11.95mm/11.70mm - 4.10mm/3.60mm tarmac rally - race
5503434 300°/293° - 266°/258° - 12.20mm/11.95mm - 4.55mm/4.10mm full race
Cams to remove VVT and for use with only solid lifters
5503506
295°/288° - 259°/251° - 11.95mm/11.45mm - 4.15mm/3.60mm tarmac rally - race
5503505 304°/295° - 267°/259° - 12.45mm/11.95mm - 4.65mm/4.15mm full race
