Clio 2 RS 5 Speed Sequential Gearbox and Fitting Kit

SKU
Clio 2 RS 5 Speed Sequential Gearbox and Fitting Kit
£11,220.00 £9,350.00
In stock
SKU
Clio 2 RS 5 Speed Sequential Gearbox and Fitting Kit

Please select options below.

Beckert 5 speed sequential gearbox with fitting kit.  No fabrication, cutting or drilling is required to fit - this kit is a complete bolt in solution!!

Gearbox: Beckert Technology 5 Speed FWD sequential gearbox, straight cut with dog engagement, dual ramp angle plate LSD. 1"x23 teeth input shaft clutch spline.
Rated for 350Nm (260lb/ft), and supplied with a one year warranty against shaft and gear teeth issues.(Higher torque ratings are possible with the longer final drive options).

    RATIOS
  ULTRA SHORT SHORT SET LONG SET
1st 2.909 2.909 2.909
2nd 2.455 2.182 2.182
3rd 2.083 1.733 1.667
4th 1.769 1.438 1.313
5th 1.533 1.235 1.1
5th option     1.05

FD 3 3.5 3.82 4.08 4.67 5

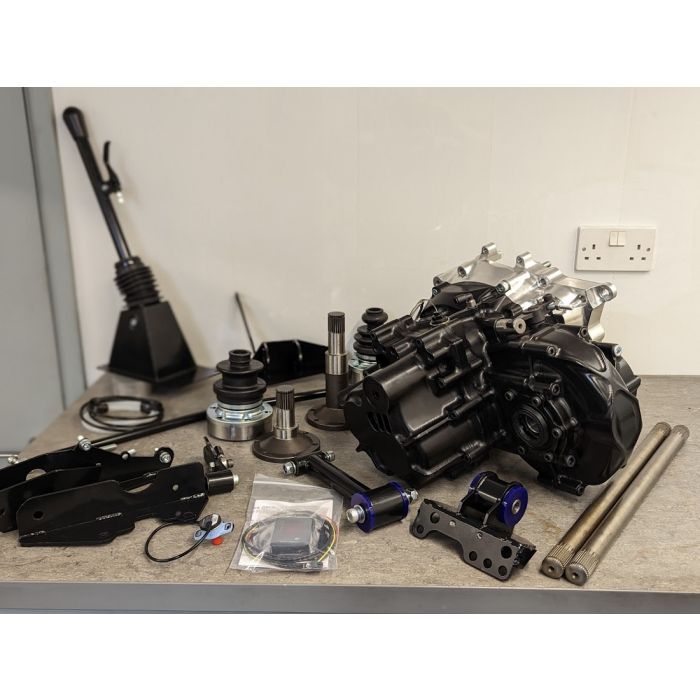

Kit includes:

  • Upper and lower gearbox mounts
  • Shifter
  • Output drive flanges
  • High strength inner CV joints
  • Driveshafts
  • Outer CV joints (SNR with larger internal spline size)
  • Hydraulic release bearing slave cylinder (will require a hydraulic clutch conversion)

Optional extras:

  • Gear display
  • Single or twin channel gear position sensor
  • Flywheel to accept 7.25" clutch
  • Tilton twin plate 7.25" clutch
  • Concentric slave cylinder height is to match the above clutch set-up - different heights available when using other clutches (you can't use a standard Renault splined clutch)

Ratios will suit all vehicle uses, please contact us for a speed chart for your specific vehicle and required top speed.
