Clio 3 RS Cup Racer EE Bracket kit

SKU
Clio 3 RS Cup Racer EE Bracket kit
In stock
SKU
Clio 3 RS Cup Racer EE Bracket kit

Clio 3 RS Cup Racer EE Bracket kit

Grouped product items
Product Name Qty
Clio 3 RS Cup Racer EE Brackets
£498.00 £415.00
Clio 3 RS Bump Steer Kit for EE brackets
£60.00 £50.00
Clio 3 RS Longer Driveshafts for EE bracket kit (bare shafts for TL4)
£600.00 £500.00
Clio 3 RS Longer Driveshafts for EE bracket kit (fully built shafts for TL4)
£1,080.00 £900.00
Clio 3 RS Longer Driveshafts for EE bracket kit (bare shafts for ND0)
£600.00 £500.00
Clio 3 RS Longer Driveshafts for EE bracket kit (fully built shafts for ND0)
£1,080.00 £900.00
Clio 3 RS Longer Inner Track Rods for EE Brackets
£156.00 £130.00
Superpro Adjustable Anti-Rotation Links Clio 3 RS
£108.00 £90.00

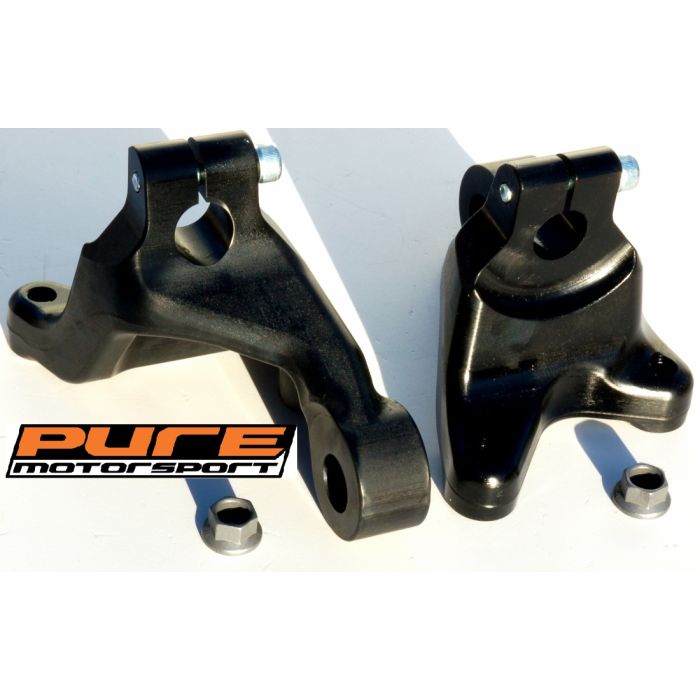

EE Brackets

A pair of EE brackets similiar to those fitted to the Cup race cars. They raise the stock roll centre and provide more caster.
They are CNC machined from steel and have a black Zinc Nickel coating for corrosion protection.
They are supplied as a pair with new pinch bolts and K nuts for the wishbone ball joints.

Bump steer kit

This bump steer kit is only for use with the Pure Motorsport Cup Racer EE brackets.
They feature slightly different bump steer characteristics than the Renault versions so can only be used with our EE brackets. They also have Schnorr serrated washers for more reliable locking of the track rod end sleeve nuts.
The kit includes:
Two steering rack spacers
Two track rod end spacer cones
Two sleeve nuts with Schnorr safety locking washers

Driveshafts

Longer driveshafts only for use with the Pure Motorsport Cup Racer EE brackets.
Two bare shafts for fitting up to your existing driveshafts when using the original TL4 or Megane ND0 gearbox OR
Two complete shafts built into brand new driveshafts when using the original TL4 or Megane ND0 gearbox.

Track rod inner joints

Longer inner track joints only for use with the Pure Motorsport Cup Racer EE brackets.
Two complete genuine Renault inner track rod kits, lengthened by TIG welding in lengthening tubes.
Complete with boots and clips.

Adjustable anti rotation links

Superpro adjustable links.  These replace the standard fixed links and can be adjusted to be long enough for use with our EE brackets and the added benefit of being much stronger. These uprated links are machined from aluminium with high quality M12 ball joints at each end.  These need to be set to 173mm long.



Please note that some wheels will not fit with this kit - please check the clearance between the wheel and the wishbone with the steering on full lock both ways.
