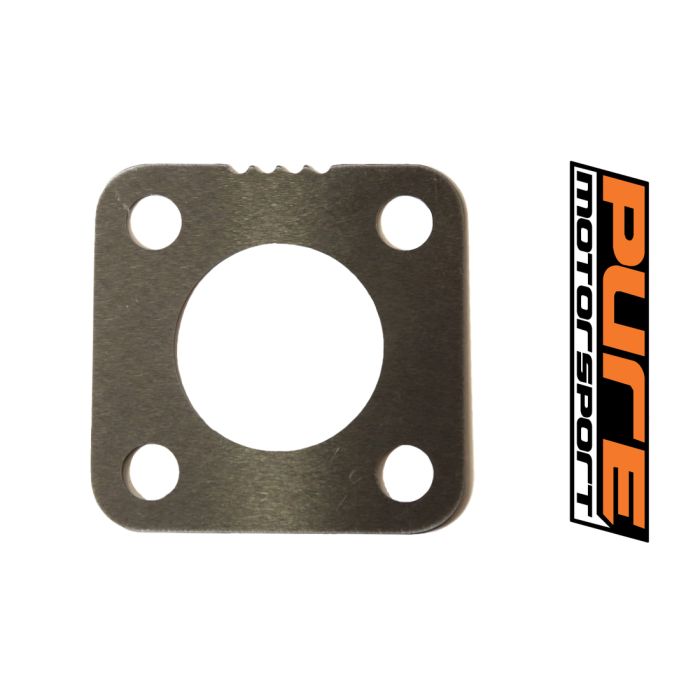

Rear camber/toe shim for Renaultsport Megane 3.

These shims are used for accurately adjusting the rear camber or toe. Accurate setting up of the rear suspension will drastically improve the handling of your Renaultsport Megane.

They are highly accurately CNC ground from laser cut steel for precision and durability (not like many plastic shims on the market!)

Price is per shim

New updated design has notches cut on the thin edge showing angle:
1 notch = 10'

2 notch = 20'

3 notch = 30'

4 notch = 1deg

For very fine tuning we now offer 0.1mm thick shim washers (x2), which will give approximately 5min adjustment that can be used for toe or camber adjustment.

They are to be fitted between the stub axle and the rear torsion beam.

Fitting instructions here:
Fitting Guide

Please use the calculator below to see what shims you need.  Select vehicle model, input the wheel size if toe is measured in mm at the wheel rim.  Input your desired finished camber and toe settings and select which units you are using.  EG: decimal degrees are shown as -1.50° equivalent to 1°30' arcminutes (60' (minutes) in one degree).  Input your current measured settings making sure to select the correct units of measurement as before - remember that toe can be measured in mm, so input wheel size.  Results will show after clicking the 'calculate' button. The calculator will convert your actual and desired settings into arcminutes and show which shims you need to fit, which way around they need to be fitted, and the total amount of shims.

The tolerance is set to 5' as the smallest shims we sell are 10' but this can be changed if you need a tighter or looser tolerance.  The residual measurement is any angle that cannot be rectified by using a combination of shims.

Remember to input negative numbers for camber, and toe in is positive, toe out is negative.
